How Does A Hydraulic Grapple Work?

Upgrading to an Excavator Hydraulic Grapple represents a significant capital investment for any heavy machinery fleet. The basic concept of grabbing and moving material seems simple enough. However, the underlying fluid dynamics and machine integration determine actual success on the job site. These factors dictate whether your new attachment drastically increases productivity or causes catastrophic hydraulic failures.

Many buyers get lost in flashy marketing claims. They often overlook core compatibility metrics and operational requirements. This guide strips away the noise to explain the exact mechanical and hydraulic principles behind these attachments. We will help fleet managers and operators evaluate technical specifications confidently. You will learn specific installation requirements and discover how to avoid costly equipment mismatching. By understanding these systems deeply, you can select the perfect tool for your specific operational demands.

Key Takeaways

• Core Mechanism: Hydraulic grapples rely on dedicated double-acting cylinders to independently articulate the jaws, providing consistent, active clamping force regardless of the boom's position.

• Flow vs. Pressure: Hydraulic flow (GPM) dictates jaw speed, while hydraulic pressure (PSI) dictates clamping strength. Both must strictly align with your carrier machine's auxiliary output.

• Valve Integration: Installation requires auxiliary hydraulic lines. Choosing between a true third-function kit and a diverter valve dictates whether operators can perform simultaneous machine movements.

• Material Lifespan: True heavy-duty performance relies on abrasion-resistant steel (AR400/500), hardened pins, and shielded cylinders to survive high-impact sorting and demolition.

The Core Mechanics of an Excavator Hydraulic Grapple

To maximize site efficiency, operators must understand exactly how a Hydraulic Grapple functions physically. The underlying mechanics dictate what the machine can and cannot do.

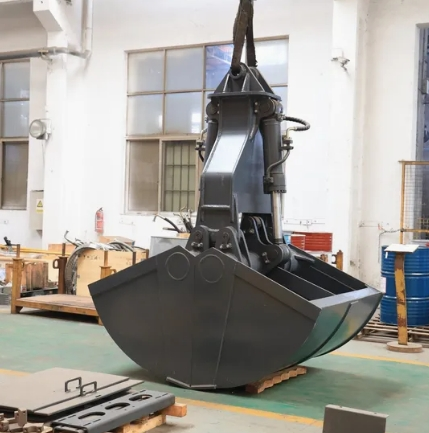

Double-Acting Cylinders

Modern grapples rely on robust double-acting hydraulic cylinders. Pressurized hydraulic fluid flows into these cylinders through dedicated auxiliary lines. The fluid actively pushes the cylinder rod outward to close the upper jaw. Conversely, routing fluid to the opposite port pulls the rod inward to open it. This double-acting design allows the upper jaw—or both jaws, depending on the model—to open widely and forcefully bite down. It ensures a high-pressure grip on heavy debris.

Independent Articulation

This mechanism differs vastly from standard bucket operation. Standard buckets rely solely on the machine's primary curl and tilt cylinders. Grapple jaws operate entirely independently of the excavator arm. They maintain constant grip tension on a concrete slab or log while the main boom moves. This independent articulation provides operators with unmatched precision. You can secure a load, lift it, and pivot the arm without losing your clamping force.

360-Degree Rotation (Optional/Premium)

Advanced attachments take articulation further. They route hydraulic fluid through a specialized hydraulic rotator mechanism. This allows the entire grapple head to spin continuously in 360 degrees. Operators can precisely position irregular loads, like long pipes or awkwardly shaped structural steel. Crucially, they can do this without repositioning the carrier tracks. This reduces wear on the undercarriage and speeds up cycle times drastically in tight workspaces.

Hydraulic vs. Mechanical Grapples: Analyzing the Cost-to-Capability Ratio

Choosing between a mechanical and a hydraulic attachment requires a clear understanding of their respective operational limits. Both serve a purpose, but they cater to vastly different productivity demands.

Mechanical Grapples (Gravity & Stiff-Arm)

Mechanical versions offer a simpler approach to material handling. They do not require complex plumbing.

• How it works: A mechanical grapple relies on a fixed stiff-arm connected to the excavator stick. It uses the machine’s existing bucket cylinder to pinch material against this fixed arm. To open the jaw, the operator lifts the boom, allowing gravity to drop the lower section open.

• Pros: They feature a significantly lower upfront cost. Operators require zero hydraulic modifications to the carrier machine. Installation takes minutes.

• Cons: They completely lack independent clamping power. Because they rely on the bucket curl motion, operator agility remains highly limited. You cannot actively crush or squeeze loads with independent pressure.

Hydraulic Grapples

Hydraulic models represent the industry standard for high-volume demolition and sorting.

• How it works: These attachments use dedicated internal cylinders. They draw power directly from auxiliary hydraulic lines routed down the excavator boom.

• Pros: They yield vastly superior precision. Operators experience faster cycle times and active gripping strength. They handle awkward, shifting loads securely without relying on gravity.

• Cons: They command a higher initial cost. They strictly require dedicated machine plumbing and auxiliary valves. Maintenance demands also increase due to the exposed hydraulic hoses.

Comparison Chart: Cost-to-Capability

Feature	Mechanical Grapple	Hydraulic Grapple
Power Source	Existing bucket cylinder & gravity	Dedicated auxiliary hydraulic lines
Clamping Force	Passive (relies on curl leverage)	Active (independent cylinder pressure)
Installation Needs	Basic mounting bracket	Plumbing, hoses, and valve kits
Best Application	Occasional brush clearing, light debris	Heavy demolition, scrap sorting, logging

Hydraulic Integration: Routing Power to the Attachment

A premium attachment remains useless without proper fluid routing from the carrier machine. The implementation reality dictates that fluid must travel seamlessly from the main pump to the tool. How you route this power impacts daily operator efficiency.

Third-Function Valve Kits

A true third-function valve kit operates on a "continuation" fluid path. It draws fluid from the power beyond port on the main loader valve. This setup creates a dedicated, uninterrupted line to the attachment.

This design allows the operator to open or close the jaws while simultaneously curling the attachment or moving the boom. Simultaneous movement proves absolutely essential for high-efficiency sorting. Experienced operators rely on this fluid motion to pick, pivot, and drop materials in one continuous sweep. It represents the gold standard for high-production environments.

Diverter Valve Systems

Diverter valve systems offer a different mechanical logic. They operate by temporarily re-routing fluid from the machine's existing tilt or curl function.

The trade-off here involves operational fluidity. When the operator presses the control button, fluid diverts to the grapple jaws. During this moment, the bucket curl function pauses entirely. Operators must pause bucket curl to actuate the jaws. This stop-and-go motion results in slower overall cycle times. However, diverter kits provide a much more cost-effective retrofit for older excavators lacking factory auxiliary lines.

Best Practices for Valve Selection

If your project demands constant, high-speed sorting, invest in a third-function kit. If you only move occasional debris and want a budget-friendly retrofit, a diverter valve suffices. Always consult a hydraulic technician to ensure your machine's pump can handle the added circuit.

4 Essential Evaluation Criteria for Shortlisting a Grapple

Evaluating specification sheets requires understanding exactly how numbers translate to real-world digging and sorting. Focus on these four criteria to shortlist the right attachment.

1. Matching GPM and PSI (The Performance Math)

Hydraulic power relies on two specific metrics. Ignoring them guarantees poor performance or severe equipment damage.

• GPM (Gallons Per Minute): Fluid flow dictates how fast the jaws open and close. Your excavator must deliver the exact GPM the attachment requires. Exceeding the specified GPM causes jerky, erratic movements and dangerous heat buildup in the hydraulic oil.

• PSI (Pounds per Square Inch): Pressure dictates maximum crushing and clamping force. Over-pressurizing the cylinders will blow seals and rupture hoses. Under-pressurizing results in a weak grip, causing dropped loads and serious safety hazards.

2. Jaw and Tine Configuration

The shape of the metal directly dictates what materials the attachment can handle efficiently.

• Bypass Jaws: The tines overlap seamlessly when closed. This design clamps down tightly on irregular or small, loose materials. It works best for brush, branches, and mixed municipal debris.

• Box/Demolition Jaws: These jaws meet flush squarely in the middle. They feature a wider, reinforced base. This profile proves ideal for grabbing heavy, uniform materials and sorting large structural steel debris.

• Tooth Profile: Sharp teeth penetrate logs and dense rock easily. Conversely, serrated edges provide friction for gripping smooth, cylindrical objects without slipping.

3. Structural Integrity & Metallurgy

Material composition separates professional-grade tools from entry-level options. Look closely at the steel specifications on the manufacturer's sheet.

You must demand construction utilizing AR400 or AR500 wear-resistant steel. Avoid attachments built from standard mild structural steel. High-abrasion environments, like concrete demolition or scrap yards, destroy mild steel rapidly. AR400 steel offers up to a 3x lifespan difference in abrasive conditions. Hardened steel protects your investment against constant grinding and high-impact strikes.

4. Weight and Payload Thresholds

Physics limits what your excavator can safely lift. Adding a heavy steel tool reduces your machine's net lifting capability. You must calculate your payload thresholds accurately.

Use this basic formula: Attachment Weight + Max Load Weight ≤ Carrier’s Safe Operating Lift Capacity. Heavy attachments rob the excavator of usable lifting payload. If you buy an oversized, ultra-heavy tool for a mid-sized excavator, you might not have enough capacity left to actually lift heavy concrete blocks safely. Always check the machine's lifting chart before buying.

Operational Risks and Preventative Maintenance Baseline

Buying the right attachment only solves half the equation. Keeping it out of the repair shop requires strict operational discipline. Fleet managers must train operators on specific usage boundaries and maintenance routines.

The "Side-Loading" Danger

Operators frequently make the mistake of using the jaws to laterally sweep, pry, or drag heavy material on the ground. This practice is known as side-loading. Excavator arms and grapple pivots are engineered for vertical lifting forces, not lateral stress.

Side-loading applies immense lateral torque. This stresses the pivot points, shears the hardened pins, and can ultimately twist or damage the excavator's stick. You must instruct operators to pick up materials squarely. Never use the attachment like a side-sweeping broom.

Cylinder Protection

Exposed hydraulic cylinders present a massive vulnerability on demolition sites. Rogue rebar, sharp concrete edges, or thick branches can easily strike the cylinder rods. A single deep scratch on a hydraulic rod will shred the internal seals, leading to massive fluid leaks.

Ensure the shortlisted model features heavily gusseted cylinder guards. These thick steel plates shield the sensitive rods from direct impact while allowing full articulation.

Maintenance Cadence

Consistent maintenance prevents catastrophic downtime. Implement these simple schedules:

1. Daily Checks: Perform visual checks for hydraulic weeping around hoses and fittings. Inspect the primary pivot points. Check the bolt torque on all mounting hardware before turning the key.

2. Weekly Maintenance: Grease all bronze and steel bushings thoroughly. Proper lubrication pushes out dirt and prevents pin galling. Lack of grease leads directly to excessive slop in the jaws.

Conclusion

Successful deployment of a hydraulic attachment demands technical precision. You must match the attachment's hydraulic demands—specifically GPM and PSI—to the carrier's exact auxiliary output. Failing to align these numbers will result in sluggish operation, overheating, or blown cylinder seals.

Furthermore, structural integrity heavily influences durability. Opt for AR400 or AR500 steel to survive aggressive daily use. Protect your investment by avoiding side-loading and adhering to strict daily maintenance checks.

Before making a final purchase, take specific next steps. Encourage your buyers or maintenance team to consult with your equipment dealer. Audit your machine's current hydraulic plumbing. Determine whether you currently run a third-function system or a diverter valve. Securing this information guarantees you finalize a grapple style that integrates perfectly with your existing fleet.

FAQ

Q: Can I run a hydraulic grapple on a standard excavator without auxiliary lines?

A: No. If your machine only has plumbing for standard bucket operation, you will need to install an aftermarket auxiliary hydraulic kit (plumbing and valves) to power the grapple’s cylinders.

Q: What is the difference between a demolition grapple and a scrap grapple?

A: Demolition grapples typically feature a wider, box-tine design for sorting mixed debris and structural steel. Scrap grapples are heavily armored, often feature replaceable wear tips, and are designed to withstand constant grinding against highly abrasive, high-density materials.

Q: Why is my hydraulic grapple closing too slowly?

A: Slow cycle times generally indicate insufficient hydraulic flow (GPM) from the carrier machine to the attachment, or a restriction in the auxiliary valve/couplers. It is a flow issue, not a pressure (PSI) issue.
