How To Choose The Right Hydraulic Pile Hammer for Your Piling Project

Choosing the correct hydraulic pile hammer is critical for any piling project. An under-powered hammer may never drive piles to the required depth, leading to delays or even foundation failures. Conversely, an over-powered hammer can overstress or damage piles (for example, causing concrete pile cracks or timber splitting), and wastes fuel or causes excessive vibration. In practice, engineers carefully match the hammer to the pile and soil: if piles crack or piles drive too slowly, crews may adjust ram stroke or even switch to a different hammer. This guide explains the key factors—pile type and size, soil conditions, and hammer energy vs. frequency—to consider when selecting a hammer, so you avoid these problems and drive efficiently.

Assessing Pile Type & Size

Different piles have very different driving needs. The most common pile types are steel sheet piles, pipe piles, and H section piles, though hammers can also drive timber and precast concrete piles. In general, steel piles (H-sections, pipe, etc.) are heavy and stiff, requiring more impact energy, while timber piles are lighter and may need less force but are more prone to splitting under hard blows. Precast concrete piles fall in between.

• H-piles (wide-flange beams) – These steel beams (shaped like an “H”) have very high bending stiffness and capacity. They are used for deep foundations under large loads. Because of their high stiffness, a heavy hammer is often needed to drive H-piles into hard layers.

• Steel pipe piles – Pipe piles are large-diameter tubes. They offer high load-bearing and bending resistance, making them ideal for driving deep into rock or stiff soils. Their large mass and surface area usually require high-energy hammer blows to overcome soil resistance and friction.

• Timber piles – Wood piles are light and relatively cheap. They are often tapered, which increases skin friction, and can still support heavy loads because of that friction. Since timber piles weigh much less than steel, a smaller hammer may suffice, but care is needed: timber can split or spall if hammered too aggressively, so pile cushioning or a smaller impact may be used to protect the wood.

• Concrete piles – Precast concrete piles (square or octagonal) have significant weight and strength. They are driven with hammers (diesel or hydraulic). Driving concrete piles requires avoiding excessive tension or compression stress; often hammers have shock-absorbing cushions or heavy heads to distribute the force gently.

The pile’s dimensions also affect hammer selection. A longer pile develops more side friction (skin resistance) as it penetrates, so it usually takes more blows or higher-energy blows to reach depth. A larger cross-section or wall thickness means a higher pile impedance (resistance to motion). In fact, studies show that a pile with a larger tip area (higher impedance) transmits more force and penetrates deeper for the same hammer than a pile with a reduced cross-section. In short, heavy, long piles require hammers with higher rated energy (kJ) to overcome the increased soil friction and inertia.

Soil Conditions & Blow Energy

The soil plays a huge role in hammer choice. Soil bearing capacity and hardness determine how much resistance the pile will face. In soft or loose soils (soft clays, loose sands), the pile will drive relatively easily; a lower-energy hammer or fewer blows may be enough. In contrast, dense, compacted soils or rock (e.g. stiff sand, gravel, weathered rock) exert very high resistance, requiring a hammer with higher impact energy.

In extremely dense ground or when obstructions (like boulders or debris) are expected, pre-drilling a pilot hole is often necessary. For example, if you hit rock or obstructions below the water table, a pre-drilled hole (not larger than the pile width) can be drilled first to assist driving. Similarly, in highly compacted soils, drilling a starter hole ahead of time is recommended. Pre-drilling reduces driving resistance but can reduce skin friction (and thus ultimate capacity), so it should be specified in the design if needed.

Direct driving (no drilling) is typically used when soils are uniform or friction capacity is acceptable. For example, sandy or clayey soils often allow direct driving: the hammer’s energy is spent compressing and cutting through the soil. If pore pressures build up during driving (common in saturated sands), it can temporarily stiffen the soil (“hard driving”), but this often dissipates with time or staged driving. In very soft clays, driving tends to be “easy” (few blows), and small hammers can often do the job without special measures.

Key points on soil and driving:

High bearing capacity soils: If the soil is firm or reaches rock quickly, use a hammer with higher energy to penetrate those strata. Consider drill-to-assist (pilot hole) or driving tips (driving shoes) to cut through dense layers.

Loose or soft soils: Lower hammer force can avoid over-driving piles. Excess energy in very soft ground can cause the pile to “bounce” or damage the pile. Hydraulic hammers tend to be smoother than diesel in soft soils, and vibratory hammers are often used where soils will hold up piles with friction.

Pre-drilling: In dense or rocky soils, pre-drilling is common. Codes often limit drill size to the pile’s narrowest dimension. GoliathTech notes that in “highly compacted soil, the use of pre-drilling may be necessary during installation”.

Driving aids: For hard layers, attach cutting shoes or conical tips to piles to protect and stiffen the pile tip.

Matching the hammer to soil ensures efficient driving. In all cases, record blow counts during driving: unexpectedly high blow counts mean the hammer is struggling (maybe consider pre-drilling or a stronger hammer), while very low counts might signal soil anomalies or pile damage.

Selecting Rated Energy vs. Blow Frequency

Hydraulic pile hammers are rated by their impact energy (often given in kJ or ton-meters) and blow frequency (blows per minute). In general, there is a trade-off:

High-energy, low-frequency hammers deliver big hits (high kJ per blow) but only 20–60 blows per minute. These heavy hammers are good for driving large, heavy piles into hard ground. Each blow moves the pile a significant distance. An example is a large hydraulic hammer used for large casing or pipe; one such “hydrohammer” delivered an “ultra-high-energy, low-frequency” impact (with extremely high acceleration) to shear through ground. Heavy hammers can push through tough layers and set piles on rock, but they are slower (fewer blows) and create more vibration per blow.

Low-energy, high-frequency hammers deliver small impacts (low kJ) but at very high rates (hundreds of blows per minute). A modern example is using a compact hydraulic breaker on ductile iron piles: each blow is much weaker than a diesel hammer’s, but the hammer strikes 300–600 times per minute. The result is rapid pile penetration with less ground disturbance. This approach is often used when vibration must be minimized (less noise and shock) or when piles are relatively small/lightweight.

Deciding between these comes down to the pile and project needs. High-energy blows are needed if a pile’s impedance is large (for example, a heavy steel pipe pile in rock). Low-energy, high-frequency drives are useful for small piles or sensitive sites (as long as the pile will still reach full depth).

Trade-offs and considerations:

• Driving speed: High-energy strikes move piles quickly per blow, so they may set large piles in fewer hammer blows (though each blow takes more time to complete). Low-energy high-frequency hammers drive many small movements, which can result in very rapid overall driving for light piles.

• Vibration and noise: Many quick blows (as in low-energy hammers) tend to produce lower peak vibrations than a few massive blows. The ductile-iron pile example notes that the high-blow-rate, low-energy approach “rapidly drives the pile with minimal vibrations”. This can be a big advantage in urban or sensitive environments.

• Hammer efficiency: Any given hammer has an energy rating and an optimal blow rate. For example, a small hydraulic hammer might be rated for 36 kJ at 40 blows/min, while a larger model might be 72 kJ at 40 blows/min. You usually cannot crank a hammer well above its designed frequency.

• Soil type: In very loose soils, a smaller hammer fired rapidly can set the pile. In mixed or stiff soils, a bigger hammer with more energy may be needed to “break through”.

No single formula fits every case. Often engineers will compare hammer charts or use wave-equation software to predict blow count vs. energy. As one pile-driving guide notes, “proper hammer sizing is not accomplished simply by meeting the minimum energy requirement” – the hammer must overcome both the expected soil resistance and the pile’s impedance. In practice, modern hammers can be adjusted (for example by changing cushion or drop-weight) to fine-tune energy per blow, and the choice between “high-energy/low-frequency” versus “low-energy/high-frequency” often comes down to site-specific needs (drive speed vs. vibration control).

Case Example: Urban Slab Foundations vs. Marine Piers

Consider two scenarios to illustrate hammer choices:

• Urban slab foundation: Imagine driving piles for a shallow concrete slab in a city center. Loads are moderate, and piles might be short H beams or sheet piles. Space is tight and there are strict noise/vibration limits (near other buildings or utilities). Here a compact hydraulic hammer or even a vibratory hammer is often used. Such hammers may deliver many quick, lower-energy blows to gently set piles with minimal disturbance. For example, when installing driven piles next to occupied buildings, crews may choose a smaller impact hammer or use vibration-damping techniques (like soft-start vibratory drives). The goal is fast installation while protecting nearby structures, so the hammer is chosen more on its vibration/noise performance than raw power.

• Marine pier or heavy bridge footing: On the other hand, building a pier over water often involves very large-diameter steel pipe piles driven 50–100 ft into seabed and rock. Noise is less of a concern offshore, and the foundation must support huge loads. In this case, a heavy-duty pile hammer is needed. Crews would use a large crane- or barge-mounted hydraulic hammer (or even a diesel hammer) with high impact energy (hundreds of kJ) and a heavier ram. Such hammers can repeatedly deliver powerful blows to sink the piles into hard layers. In some trenchless HDD projects, for example, a hydraulic casing hammer (the IHC Hydrohammer) was used to set large casings by transferring “ultra-high-energy, low-frequency impact with an immense high-velocity acceleration” into the . A similarly robust hammer would be used for big marine piles, and often pre-drilling or tip attachments are also used if hard lenses are encountered.

These examples highlight the spectrum: on an urban slab site, compact, low-vibration hammers are preferred; on a marine pier site, maximum driving power is the priority. Of course, intermediate cases exist (e.g. a moderate-sized bridge in a suburban area might use a mid-sized hydraulic hammer with a moderate blow rate). The key is to match hammer size and style (compact/light vs. large/heavy) to the site conditions and constraints.

Conclusion & Quick Reference Chart

In summary, choosing the right hydraulic pile hammer means balancing pile type, soil conditions, and project constraints:

Pile & hammer match: Use bigger, high-energy hammers for large steel piles and deep embedment. Lighter hammers suffice for small or lightweight piles (like timber) to avoid over-driving or damage.

Soil considerations: Firm soils require more hammer energy (or pre-drilling); soft soils may be driven with less force. Drill ahead if obstructions or very hard layers are expected

Energy vs frequency: High-energy, low-frequency hammers (large blow, slow rate) are ideal for tough conditions and heavy piles Low-energy, high-frequency hammers (small blow, fast rate) work best for minimizing vibration and quickly driving lighter.

Project constraints: In noise- or vibration-sensitive areas, consider compact hammers or alternate methods (like vibratory drives or hydraulic pressing). In remote or marine sites, heavy hammer power is often worth the efficiency.

Below is a quick reference chart comparing a typical compact hammer choice (e.g. for urban/slab conditions) versus a heavy-duty hammer choice (e.g. for large marine piles):

Factor	Urban Shallow Foundations (Compact Hammer)	Marine/Deep Foundations (Heavy Hammer)
Pile Type	Shorter H beams or sheet piles; small-diameter	Large steel pipe or H-piles; heavy sections
Soil	Soft to medium (fill, sands, clays); no boulders	Stiff soil or rock; deep embedment
Hammer Energy	Low-to-moderate per blow (many blows per minute)	High per blow (fewer blows per minute)
Blow Frequency	High (100–600 bpm) to drive quickly with less noise	Low (20–40 bpm) with heavy impact
Noise/Vibrations	Critical concern; use low-vibration methods (vibratory or breaker)	Less concern (open water); high power okay
Equipment Access	Small cranes or excavators; tight space	Large cranes/barge; open area
Typical Use Cases	Urban slabs, docks, temporary cofferdams	Deep piers, bridge abutments, heavy foundations

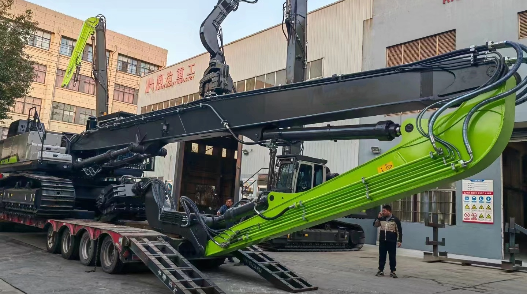

Choosing the right hydraulic pile hammer involves balancing pile type, size, soil conditions, and site needs to ensure efficient, damage-free driving. For expert guidance and reliable equipment, turn to Jiangyin Runye Heavy Industry Machinery Co., Ltd. Explore their full range of hydraulic pile hammers and get professional support tailored to your project needs. Visit www.runyegroup.com or contact us today to learn more.
