What Is An Excavator Hydraulic Grapple?

Standard excavators are highly effective digging machines. They easily move vast amounts of earth, clay, and soil. However, they often struggle when tasks require precise material handling. Irregular objects like concrete slabs or large logs easily slip from standard buckets. You can solve this problem quickly. Adding an active, cylinder-driven attachment transforms your standard digger into a high-precision material handling system.

A Hydraulic Grapple provides this exact capability. Hydraulic models require a higher upfront investment compared to static or mechanical thumbs. Yet, the massive operational efficiency gained completely justifies the expenditure. You will experience significantly faster cycle times in sorting, demolition, and loading tasks. Heavy-duty cycles become much easier to manage safely.

Choosing the right attachment requires careful evaluation. This guide provides fleet managers and owner-operators with a strict framework. You will learn how to choose the correct grapple type, size, and configuration. We will help you match the right attachment to your specific carrier machine and daily applications.

Key Takeaways

• Mechanics: Hydraulic grapples use excavator auxiliary hydraulics to actively open and close jaws, offering superior grip force and control over mechanical alternatives.

• Configurations: Buyers must choose between fixed models (lower cost, single circuit) and a **rotating hydraulic grapple** (360-degree precision, requires dual circuits or diverter valves).

• Selection Criteria: Proper sizing requires matching the grapple's operating weight, maximum jaw opening, and hydraulic flow requirements (GPM/PSI) to the specific carrier machine.

• Risk Mitigation: Preventing premature failure requires verifying construction materials (e.g., abrasion-resistant steel) and strictly avoiding "prying" or "ramming" operations.

The Mechanics: Hydraulic vs. Mechanical Grapples

Understanding the underlying engineering helps you maximize machine productivity. Excavator attachments vary wildly in their design complexity. We categorize these tools based on how they generate clamping force.

Core Structural Design

Modern fluid-driven attachments rely on a highly robust architecture. They feature a rigid main body built from thick steel plating. Two moving jaws, or a multi-tine setup, connect directly to this main housing. Heavy-duty hydraulic cylinders sit protected inside the frame. These cylinders drive the synchronized movement of the jaws. When pressurized fluid enters the cylinder chambers, the internal rods extend or retract. This fluid displacement translates into massive, instant clamping power. You secure irregular materials effortlessly.

The Limitations of Mechanical Grapples

Mechanical variants offer a simpler approach. They rely entirely on the excavator's existing bucket cylinder and a static arm, commonly called a thumb. This design makes them highly cost-effective and easy to maintain. However, they are extremely rigid. The jaws do not move independently. The operator must move the entire machine to align correctly. They must carefully scoop the material against the static thumb. This process wastes valuable time. Repositioning heavy machinery frequently also increases fuel consumption and track wear.

The Hydraulic Advantage

Fluid-driven mechanics solve the alignment problem entirely. Cylinder-driven jaws allow for independent, controlled clamping force. The operator gently squeezes brittle materials or securely crushes dense debris. This control drives clear business outcomes. You experience reduced cycle times immediately. Operators drop fewer materials across the job site. Improved site safety naturally follows. Handling awkwardly shaped loads, like jagged concrete slabs or massive tree stumps, becomes a predictable, controlled process.

Fixed vs. Rotating Hydraulic Grapples: Determining ROI

Your choice of mounting style dictates how efficiently your crew clears a site. Buyers must decide between two distinct movement profiles. Each profile addresses specific operational realities.

Fixed Hydraulic Grapples

Fixed units mount directly to the excavator stick. They only open and close. They cannot spin freely.

Best for: Forward-facing, repetitive loading tasks. They excel when material orientation rarely changes. Think of loading uniform debris into a waiting dump truck directly in front of the machine.

Implementation Reality: These attachments require only one auxiliary hydraulic circuit. Most modern excavators feature this circuit directly from the factory. They offer lower acquisition costs. They also boast minimal maintenance requirements due to having far fewer moving parts. You skip the complexity of rotating motors and swivels.

Rotating Hydraulic Grapple

These advanced units feature an internal motor. They spin continuously in either direction.

Best for: Confined spaces, complex demolition, and precise sorting tasks. When sorting tangled rebar from concrete, angular precision is critical. A Rotating Hydraulic Grapple allows operators to pick up a steel beam, spin it mid-air, and slide it perfectly into a narrow recycling bin.

Implementation Reality: They feature an integrated hydraulic rotator for 360-degree positioning. This completely eliminates the need to reposition the excavator chassis. The operator stays stationary while the attachment does the complex maneuvering.

Technical Hurdle: This advanced functionality introduces distinct mechanical demands. The attachment strictly requires two auxiliary hydraulic circuits. One circuit manages the jaw opening and closing function. The second circuit powers the rotation motor. Many standard carrier machines only feature one circuit. In these cases, buyers must factor in additional upgrades. You will need to purchase and install an electrical diverter valve kit. This valve splits the single hydraulic flow, allowing the operator to toggle between gripping and spinning functions via a joystick button.

Categorizing by Application: Matching Tool to Material

No single jaw design handles every material perfectly. Manufacturers engineer distinct tine shapes and shell structures for specific industries. Selecting the correct geometry prevents material slippage and speeds up the sorting process.

Demolition and Sorting Grapples

Demolition sites generate chaotic, mixed debris. These environments require specialized tools. Demolition variants are built with ribbed, cage-like jaws. This perforated design serves a specific purpose. It lets small dirt and useless debris sift through the gaps. Meanwhile, the jaws grip large concrete chunks or heavy steel beams securely. These units require heavy-duty rotation motors and incredibly high clamping force. They routinely handle abrasive impacts.

Log and Forestry Grapples

Handling timber presents a unique physical challenge. Logs are smooth, cylindrical, and often wet. Standard flat jaws cannot hold them safely. Forestry attachments are designed with overlapping, curved tines. When closed, these tines bypass each other. They wrap tightly around the wood, shrinking the internal gap. This overlapping action tightly secures cylindrical objects and totally prevents slipping.

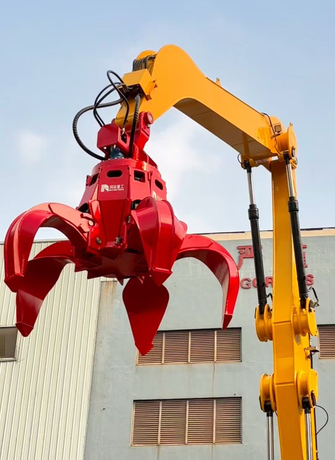

Orange Peel (Scrap) Grapples

Scrap metal yards require massive volumetric handling. Orange peel models look entirely different from traditional attachments. They feature multiple independent tines, usually four or five. These tines act like fingers. They drop into a pile of irregular scrap metal or loose refuse and enclose the material from all sides. This design is the absolute standard in recycling yards. The independent tines adjust to the uneven shapes of crushed cars and tangled wire.

Clamshell and Bucket Grapples

Moving loose, fine material requires total containment. Clamshell units feature solid-sided jaws. When closed, they form a completely sealed bucket. Operators use them primarily for dredging rivers or digging vertical foundation shafts. The solid steel sides prevent loose material like wet soil, sand, or gravel from spilling during transfer. They guarantee clean material handling over long distances.

Application Comparison Chart

Grapple Type	Jaw Design	Primary Material	Key Advantage
Demolition & Sorting	Ribbed, cage-like	Concrete, structural steel	Sifts out fine dirt; grips heavy chunks
Log / Forestry	Curved, overlapping tines	Timber, pipes, large branches	Prevents cylindrical objects from slipping
Orange Peel	4-5 independent fingers	Scrap metal, municipal waste	Encloses irregular, tangled materials
Clamshell	Solid-sided bucket halves	Sand, gravel, mud, dirt	Total material containment; zero spilling

Key Evaluation Criteria for Shortlisting

Purchasing an attachment based on appearance alone guarantees failure. Fleet managers must evaluate strict engineering tolerances. You must align the attachment's specifications perfectly with your carrier machine.

Carrier Weight Compatibility

You must map the grapple's operating weight to the excavator's payload limits. Carrier machines range broadly, typically categorized from 1-ton mini excavators up to massive 100-ton heavy carriers. The attachment acts as a permanent weight on the end of the boom. Overloading the boom introduces severe safety risks. It drastically increases the risk of tipping the machine sideways. Furthermore, constant overloading causes hidden structural fatigue in the excavator's hydraulic cylinders and main pivot pins.

Hydraulic Flow and Pressure Matches

Fluid dynamics dictate performance. Outline the necessity of checking the excavator's exact output. You must verify Gallons Per Minute (GPM) and Pounds per Square Inch (PSI) against the grapple’s required operating range.

• GPM Determines Speed: If your machine provides too little GPM, the jaws will open and close sluggishly. If it provides too much, the system overheats rapidly.

• PSI Determines Force: If your machine lacks adequate PSI, the attachment will drop heavy loads. Conversely, sending excessive pressure into the attachment blows internal cylinder seals.

Material and Build Quality

Job sites quickly destroy inferior steel. You must verify construction materials thoroughly before buying.

• Wear Resistance: Verify the use of high-tensile, abrasion-resistant (AR) steel. AR400 or AR500 steel must be present on wear zones, tine tips, and cutting edges. Standard mild steel bends under demolition stress.

• Hardware: Look closely at the connection points. Require hardened pivot pins. Insist on fully protected cylinder housings. Cylinders exposed to falling debris fail quickly. Finally, ensure the unit uses easily replaceable bushings. This minimizes downtime during routine servicing.

Attachment Dimensions

Size matters significantly in material handling. Evaluate the maximum jaw opening width. A wider opening grabs larger boulders or more brush per cycle. Next, check the closed-grip diameter. If the closed diameter is too large, the jaws cannot tightly pinch thin items like single steel pipes or small branches.

Implementation Risks and Operational Best Practices

Even the strongest engineering fails under abusive operation. Operators must adapt their driving habits when using active attachments. Poor technique destroys expensive hydraulic components in days.

Operational "Don'ts"

Operators frequently mistake attachments for basic buckets. You must explicitly warn against abusive actions. Implement these strict rules on your site:

1. Never Pry: Do not use the grapple jaws as a pry bar to tear out embedded tree roots or thick concrete slabs. Prying applies massive lateral force against the hydraulic cylinder rods. They will bend, causing instant catastrophic seal failure.

2. Prohibit Ramming: Do not ram materials. Striking a solid wall using the closed jaws acts as a hammer blow. These actions bypass all structural load limits. The shockwave travels directly into the rotation motor and destroys the internal gears.

Load Centering

Gravity constantly fights your equipment. Advise operators to always grip heavy loads near their center of gravity. Grabbing a heavy steel beam entirely on one end causes severe side-loading. This places uneven wear on the grapple’s hinges. It also strains the rotation motor unnecessarily. Centering the load keeps the machine stable and protects the attachment's structural integrity.

Maintenance Realities

Active hydraulic tools demand rigorous daily attention. Detail the strict requirement for daily greasing at all pivot points. Dry pins generate extreme friction and snap under heavy loads. Require routine inspection of hydraulic hoses for abrasion. Hoses rubbing against sharp steel will eventually burst. Finally, ensure carrier hydraulic fluid remains absolutely free of contaminants. Dirt entering the fluid lines acts like sandpaper. It will rapidly degrade and destroy the grapple's sensitive internal directional valves.

Conclusion

Adding a fluid-driven attachment transforms your operations completely. It is a major capital investment that shifts an excavator from a single-purpose digger to a highly lucrative, multi-functional material handler. You gain the ability to sort, load, and crush materials with pinpoint precision.

Take immediate action to secure the right tool. First, audit your machine's hydraulic capabilities carefully. Check your exact flow rate (GPM), operating pressure (PSI), and available auxiliary lines. Document these numbers clearly. Next, consult directly with an authorized dealer to properly size the attachment before purchasing. Matching the geometry, weight, and hydraulic demand to your specific carrier guarantees maximum productivity.

FAQ

Q: What is the difference between an excavator grapple and a grab arm?

A: A grapple is the complete functional attachment. It includes the active jaws, internal cylinders, and the main body that interacts directly with the material. The "grab arm" is a structural component connecting the grapple to the excavator's boom. The grab arm provides physical stability and houses the hydraulic line routing.

Q: Can I use a rotating hydraulic grapple on an excavator with only one auxiliary line?

A: Yes, but you cannot plug it in directly. It requires retrofitting your machine with an electrical diverter valve kit. This valve safely switches the single hydraulic flow back and forth between the opening/closing function and the 360-degree rotation function.

Q: How much weight can a hydraulic grapple lift?

A: Lift capacity is determined by the excavator's safe working load limit, not just the grapple. Heavy-duty attachments can physically withstand tens of thousands of pounds of clamping force. However, the maximum safe lift is always dictated by the carrier machine's size, hydraulic power, and rear counterweight.
